Adlib at TRNSMT 2024: Technical Production Overview

Overview

In Summer 2024, TRNSMT returned to Glasgow Green, a three-day festival featuring headline acts Liam Gallagher, Gerry Cinnamon, and Calvin Harris. Adlib's expert technical production facilitated an unforgettable experience for over 120,000 music fans.

Partners & Collaborators

DF Concerts

Awards

Client

TRNSMT

Sector

Festivals

Services

Audio / Lighting / Video / Rigging

Location

Glasgow, United Kingdom

Year

2024

Adlib provided Audio, Lighting, Video & Rigging for TRNSMT 2024 in Glasgow.
TRNSMT

Summer 2024 brought another bustling, successful festival season for Adlib, one of which included the return of TRNSMT. A three-day music festival held at Glasgow Green across the 12th, 13th, and 14th of July, it attracted all the best artists – Liam Gallagher, Gerry Cinnamon, and Calvin Harris to name a few. Adlib set out to deliver a vibrant, smoothly operated festival for these artists and the 120,000+ people who came to support their favourite musicians.

Adlib provided full technical production, spanning across all the main technical disciplines – Audio, Lighting, and Video, as well as supplying a production rigger.

Lighting & Video Production

Consoles & Visualisation Equipment

To deliver an electrifying exhibition, Adlib opted for reliable and high-quality lighting equipment, with a solid foundation being two grandMA3 full-size desks. These consoles are at the top of their range, providing a brand-new interface that enhances the command section and gives seamlessly fast access to the engineer in control.

Alongside the two grandMA3 full-size desks, Adlib used a Depence Pre-Visualisation Machine, allowing lighting technicians to pre-emptively input sequences during prep ready to take onstage.

Lighting Configuration

To bring a sea of colour to life, Adlib utilised the MAC Ultra Performance, MAC Ultra Wash, and Martin MAC Aura PXL as their moving lights, creating a seamless flow of rays across the stage and into Glasgow Green. The moving lights were aided by the power and panache of the 35 Chauvet Strike Array 4s and the 30 SGM Q8s, a great option for blinder and strobe effects. This selection of lights brought a perfect balance between elegance and punch.

Having employed over 80 moving lights, Adlib also installed six Tyler Pre Rig Trusses to fly a selection of these lights.

Using two grandMA3 full-size desks and a Depence Pre-Visualisation Machine, lighting technicians could pre-emptively input sequences during prep, ensuring a smooth transition onstage.
Calvin Harris perfomring at TRNSMT 2024.

Visual Display Systems

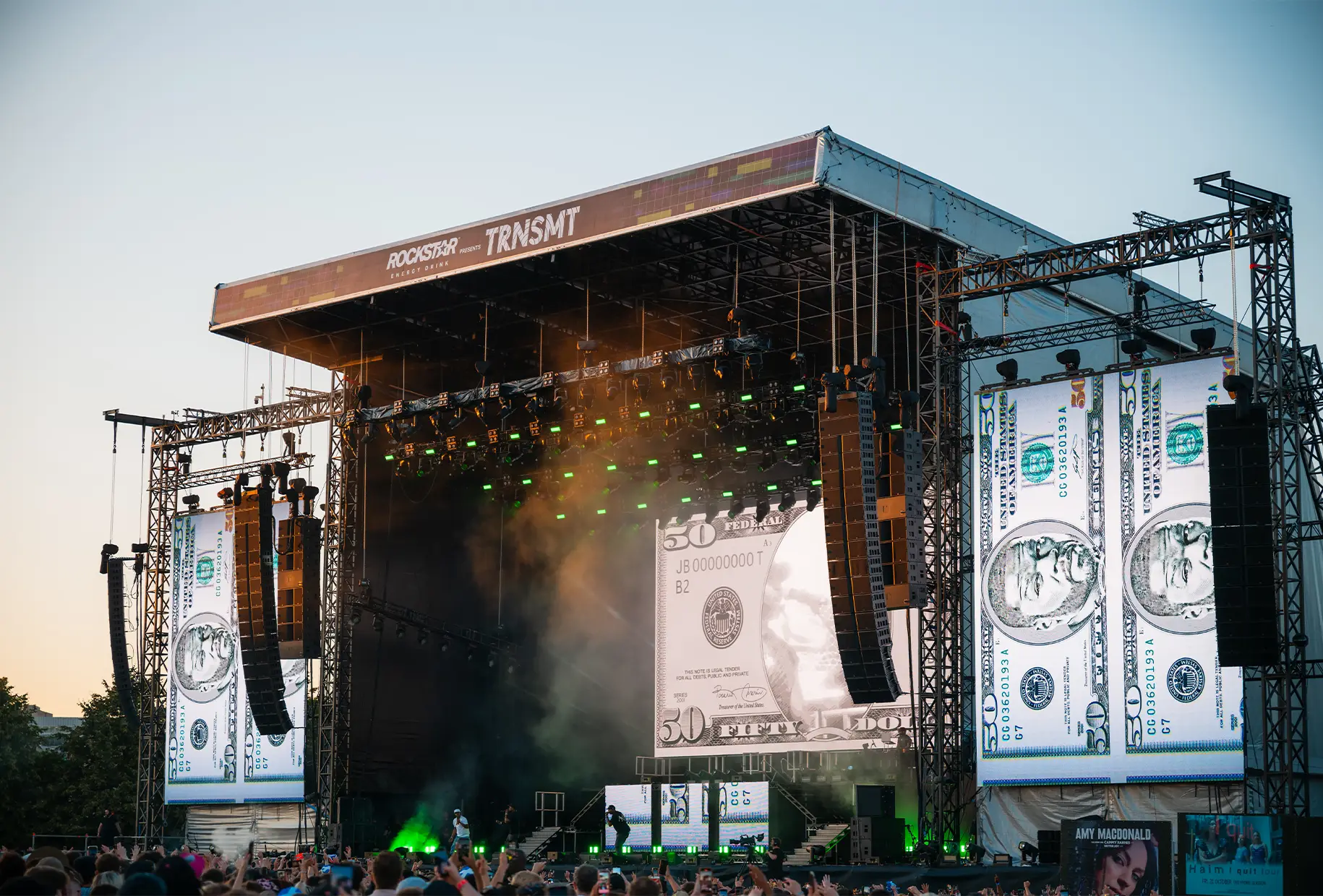

Alongside the range of lights, Adlib facilitated a presentation of stunning visuals by implementing a 120 sqm ROE Visual V8T upstage video wall, flanked by 160 sqm of Unilumin UPADIIIH5 IMAGs. These video walls projected towards Glasgow Green, ensuring everyone in the large crowd had a great view of the action.

The camera package included three Panasonic UC4000s, including one with a field lens. Operating the UC4000s were Camera Operators Adrian Moore, Stu Hurst, and Greg Vickers, positioned front of house and in the pit, with an operator occasionally on stage (operating handheld).

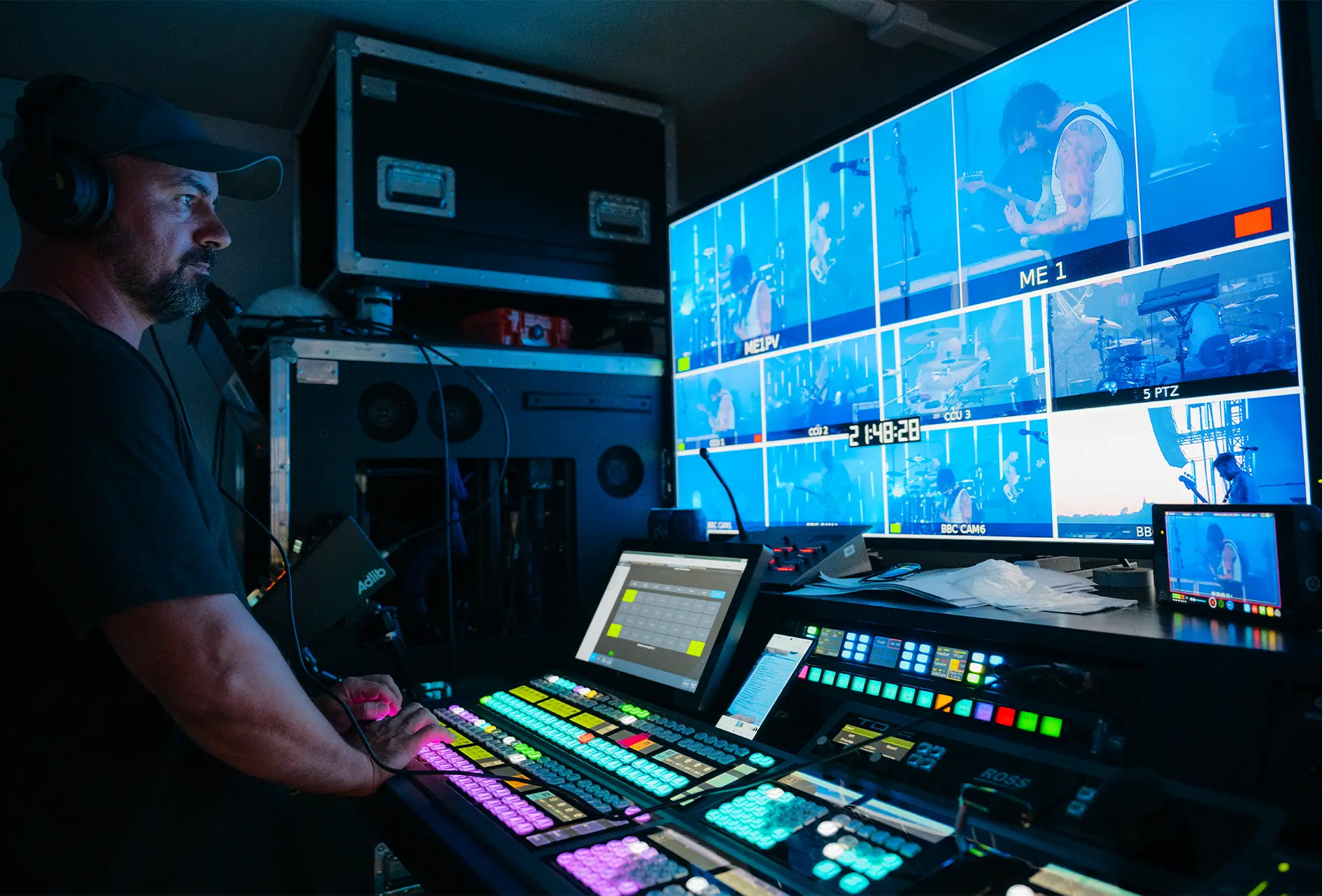

To complete the video system, Adlib brought a Ross Carbonite Vision Mixer, giving the ability to combine multiple visual sources into one output. Having a vision mixer allowed the operator to showcase alternate camera angles from the differently placed UC4000 cameras and display and switch between any video players or graphics the artists brought for their sets. The Ross Carbonite Vision Mixer was the perfect choice; with its renowned dependability and advanced capabilities, it was able to sustain the workload required.

Audio Systems

Sound Equipment

In the world of audio, Adlib required a setup that provided high-clarity sound that covered a wide area of the field. Due to this demand, Adlib opted for a very reliable, high-quality L-Acoustics loudspeaker setup paired with DiGiCo consoles at FOH and Monitors mixing positions.

The setup consisted of two main hangs and two side hangs made up of 12 x L-Acoustics K1 and 4 x K2 down and 8 x K1 and 4 x K2 down, respectively. For low-end reinforcement, the Adlib team deployed two subwoofer hangs of 9 x L-Acoustics KS28s. And finally, four delay hangs containing 8 x L-Acoustics K2s.

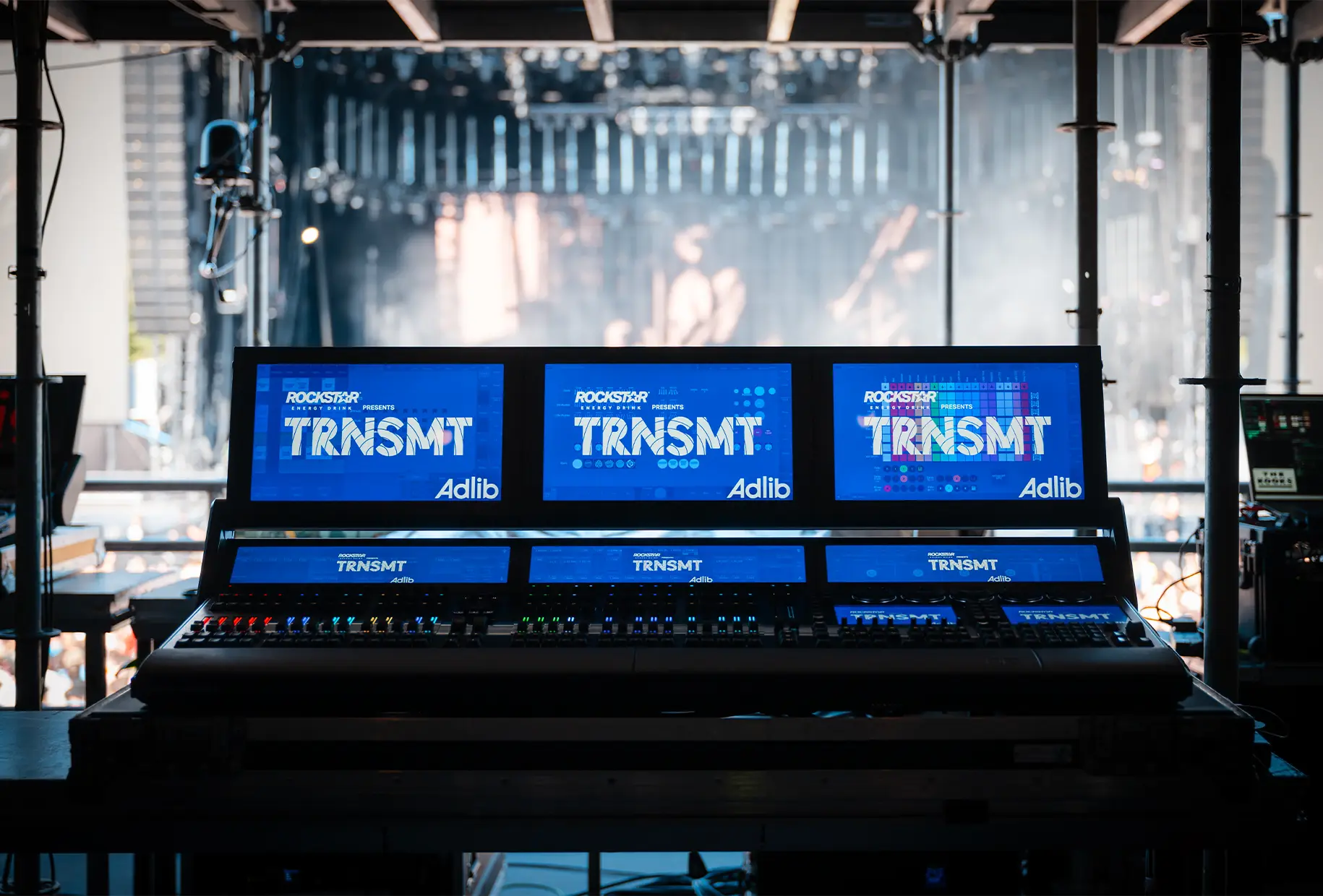

Four DiGiCo Quantum 225 desks were selected for the weekend. They brought exceptional processing power and tested workflows, making their dependability a vital addition to the audio package.

Conclusion

Adlib and DF Concerts worked side-by-side to deliver another successful rendition of TRNSMT. The top-tier production made for a smooth, unforgettable experience for all involved. We thank our incredible crew and everyone behind the scenes for their hard work and dedication to delivering such a spectacular event.

Adlib deployed L-Acoustics K Series Loudspeaker System with DiGiCo consoles at TRNSMT 2024.
